Quick Start Guide

Welcome

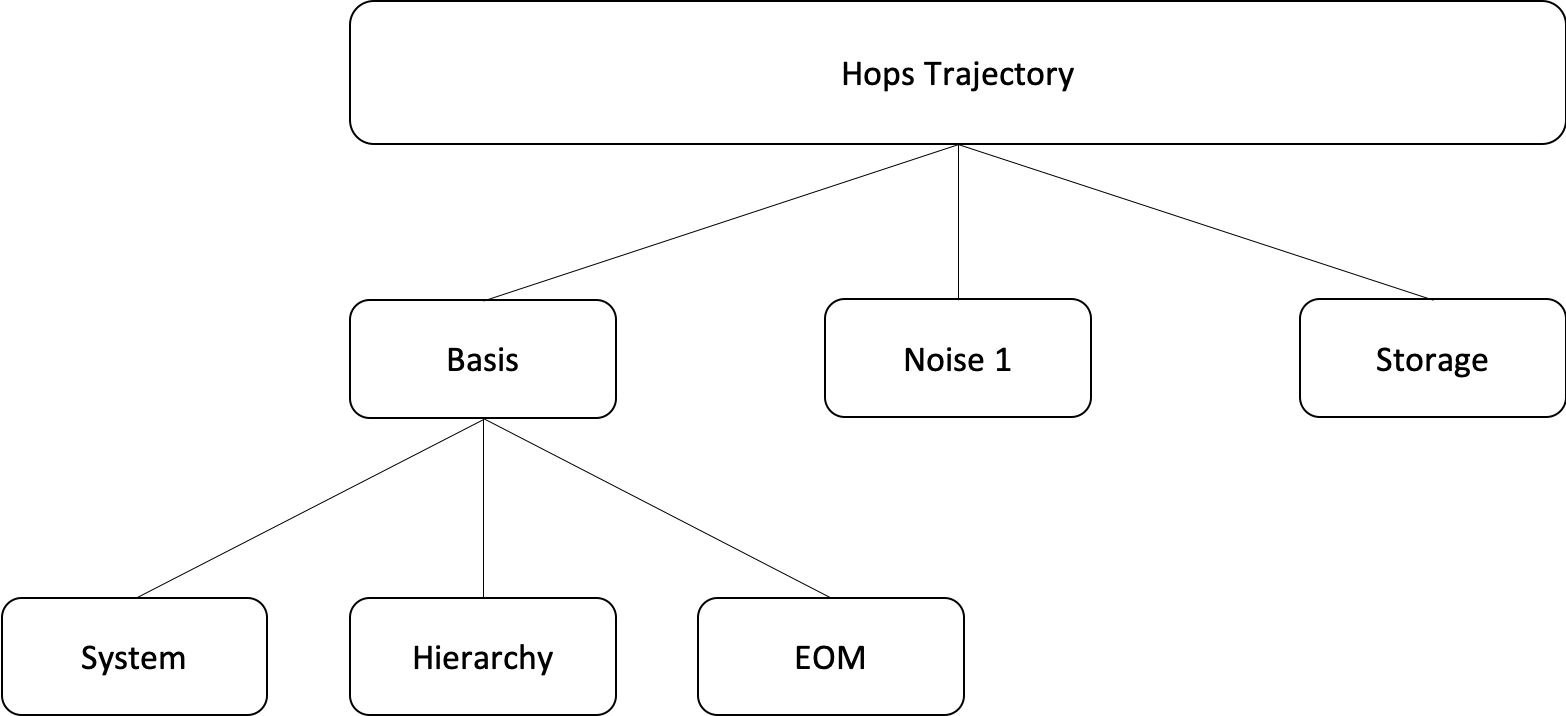

Welcome to MesoHOPS! Here we will discuss the basics of how to initialize and run a mesohops object. The code is divided into six main classes and the structure of the code can be seen below. Alt

Hops Trajectory

HopsTrajectory is the class that a user should interface with to run a single trajectory calculation. To initialize a HopsTrajectory object the following parameters are needed

  • System Parameters

  • Hierarchy Parameters

  • EOM Parameters

  • Noise Parameters

  • Intergration Paramters

These parameters are required to be in the form of a dictionary and come from the subclasses listed below.

Once an instance of the HopsTrajectory class is created there are three methods which the user will want to call.

  1. make_adaptive(delta_h,delta_s)

  2. initialize(psi_0)

  3. propogate(t_advance, tau)

Method (1) transforms a not-yet-initialized HOPS trajectory from a standard hops to an adaptive HOPS approach. The inputs delta_h, and delta_s defines the bound on the error derivate error allowed for the hierarchy and state basis. Method (2) initializes the trajectory module by ensuring that
each sub-component is prepared to begin propagating a trajectory. The input psi_0 is the wave function at the initial time. Method (3) perform integration along fixed time-points. The inputs t_advanced and tau correspond to the length of the time axis for the calculation and the time step respectively.

Hops Basis

HopsBasis is a class that forms the basis set for a HopsTrajectory and contains three other classes within that mediate the way HopsTrajectory interacts with them. The three classes are HopsSystem, HopsEOM, and HopsHierarchy. Every HOPS calculation is defined by these three classes.

Hops System

HopsSystem is a class that stores the basic information about the system and system-bath coupling. The parameters needed for HopsSystem are

  • Hamiltonian - A Hamiltonian that defines the system

  • GW_sysbath - a list of parameters (g,w) that define the exponential decomposition

  • L_HIER - a list of system-bath coupling operators in the same order as GW_SYSBATH

  • L_NOISE – a list of system-bath noise

  • ALPHA_NOISE1 - A function that calculates the correlation function given

  • PARAM_NOISE1 - A list of parameters defining the decomposition of Noise1

Hops Hierarchy

HopsHierarchy defines the representation of the hierarchy in the HOPS calculation. The parameters needed for HopsHierarchy are

  • MAXHIER - The maximum depth in the hierarchy that will be kept
    in the calculation (int)

  • TERMINATOR - The name of the terminator condition to be used (or False)

  • STATIC_FILTER - Name of filter to be used (Traingular, Longedge,Markovian)

Hops EOM

HopsEOM is the class that defines the equation of motion for time evolving the hops trajectory. Its primary responsibility is to define the derivative of the system state. The parameters for HopsEom are

  • TIME_DEPENDENCE – Defining time dependence

  • EQUATION_OF_MOTION – Name of EOM

  • ADAPTIVE_H – Boolean that defines if the hierarchy should be adaptive

  • ADPATIVE_S - Boolean that defines if the system should be adaptive

  • DELTA_H - The delta value for the hierarchy

  • DELTA_S - The delta value for the system

Hops Noise

HopsNoise is the class that controls a noise trajectory used in a calculation. The parameters for HopsNoise are

  • SEED - an integer valued seed (or None).

  • MODEL - The name of the noise model to be used. Allowed
    names include: ‘FFT_FILTER’, ‘ZERO’

  • TLEN - The length of the time axis. Units: fs

  • TAU - The smallest timestep used for direct noise calculations. Units: fs

Hops Storage

HopsStorage is a class that is responsible for storing data for a single instance of a HopsTrajectory object. HopsStorage has no inputs.

Starting a Trajectory

To run a trajcetory the following steps should be taken

  1. Initialize an instance of HopsTrajectory using the parameters outlined for HopsTrajectory

  2. Decide on a HOPS trajectory or and adHOPS trajectory using make_adaptive

  3. Initialize the trajectory using initialize()

  4. Decide on the time axis and time step for the trajectory using propagate()

Example Trajectory

#import statements
import os
import numpy as np
import scipy as sp
from scipy import sparse
from pyhops.dynamics.hops_trajectory import HopsTrajectory as HOPS
from pyhops.dynamics.eom_hops_ksuper import _permute_aux_by_matrix
from pyhops.dynamics.bath_corr_functions import bcf_exp, bcf_convert_sdl_to_exp

# noise parameters
noise_param = {
    "SEED": 0,
  "MODEL": "FFT_FILTER",
  "TLEN": 25000.0, # Units: fs
  "TAU": 1.0, # Units: fs
}

nsite = 4
e_lambda = 20.0
gamma = 50.0
temp = 140.0
(g_0, w_0) = bcf_convert_sdl_to_exp(e_lambda, gamma, 0.0, temp)

loperator = np.zeros([4, 4, 4], dtype=np.float64)
gw_sysbath = []
lop_list = []
for i in range(nsite):
    loperator[i, i, i] = 1.0
  gw_sysbath.append([g_0, w_0])
    lop_list.append(sp.sparse.coo_matrix(loperator[i]))
    gw_sysbath.append([-1j * np.imag(g_0), 500.0])
    lop_list.append(loperator[i])

# Hamiltonian
hs = np.zeros([nsite, nsite])
hs[0, 1] = 40
hs[1, 0] = 40
hs[1, 2] = 10
hs[2, 1] = 10
hs[2, 3] = 40
hs[3, 2] = 40

# System parameters
sys_param = {
    "HAMILTONIAN": np.array(hs, dtype=np.complex128),
  "GW_SYSBATH": gw_sysbath,
  "L_HIER": lop_list,
  "L_NOISE1": lop_list,
  "ALPHA_NOISE1": bcf_exp,
  "PARAM_NOISE1": gw_sysbath,
}

# EOM parameters
eom_param = {"EQUATION_OF_MOTION": "NORMALIZED NONLINEAR"}

# Integration parameters
integrator_param = {"INTEGRATOR": "RUNGE_KUTTA"}

# initial wave function
psi_0 = np.array([0.0] * nsite, dtype=np.complex)
psi_0[2] = 1.0
psi_0 = psi_0 / np.linalg.norm(psi_0)

t_max = 200.0
t_step = 4.0
delta = 1e-4
hops = HOPS(
    sys_param,
  noise_param=noise_param,
  hierarchy_param={"MAXHIER": 2},
  eom_param=eom_param,
)

hops.make_adative(delta/np.sqrt(2), delta/np.sqrt(2))
hops.initialize(psi_0)
hops.propogate(t_max, t_step)
